Page information on f72v2
| Illustration type: | Zodiac |
|---|---|
| Quire: | K |
| Page in quire: | G |
| Currier language: | unknown |
| Currier hand: | unknown |
| Has non-Voynich text: | no |
| Has key-like sequence: | no |
| Has extraneous writing: | no |
Descriptive comments
Last edited on 1998-10-09 07:39:41 by stolfi
Identification
| Title: | "Virgo" |
|---|---|
| Page: | f72v2 = KG (Rene) = p141 (Stolfi) |
| Folio: | f72 |
| Panels: | f72v2 |
| Bifolio: | bK1 = f71+f72 |
| Quire: | K (Rene) = XI (Beinecke) |
This page is the central verso panel of n eight-panel fold-out.
Attributes
| Language: | ? (Currier) |
|---|---|
| Hand: | ? (Currier) |
| Subsets: | Z (Rene), zod (Stolfi) |
| Subject: | zodiac |
| Colors: | ??? (Reeds) |
Description
[To be checked and completed]

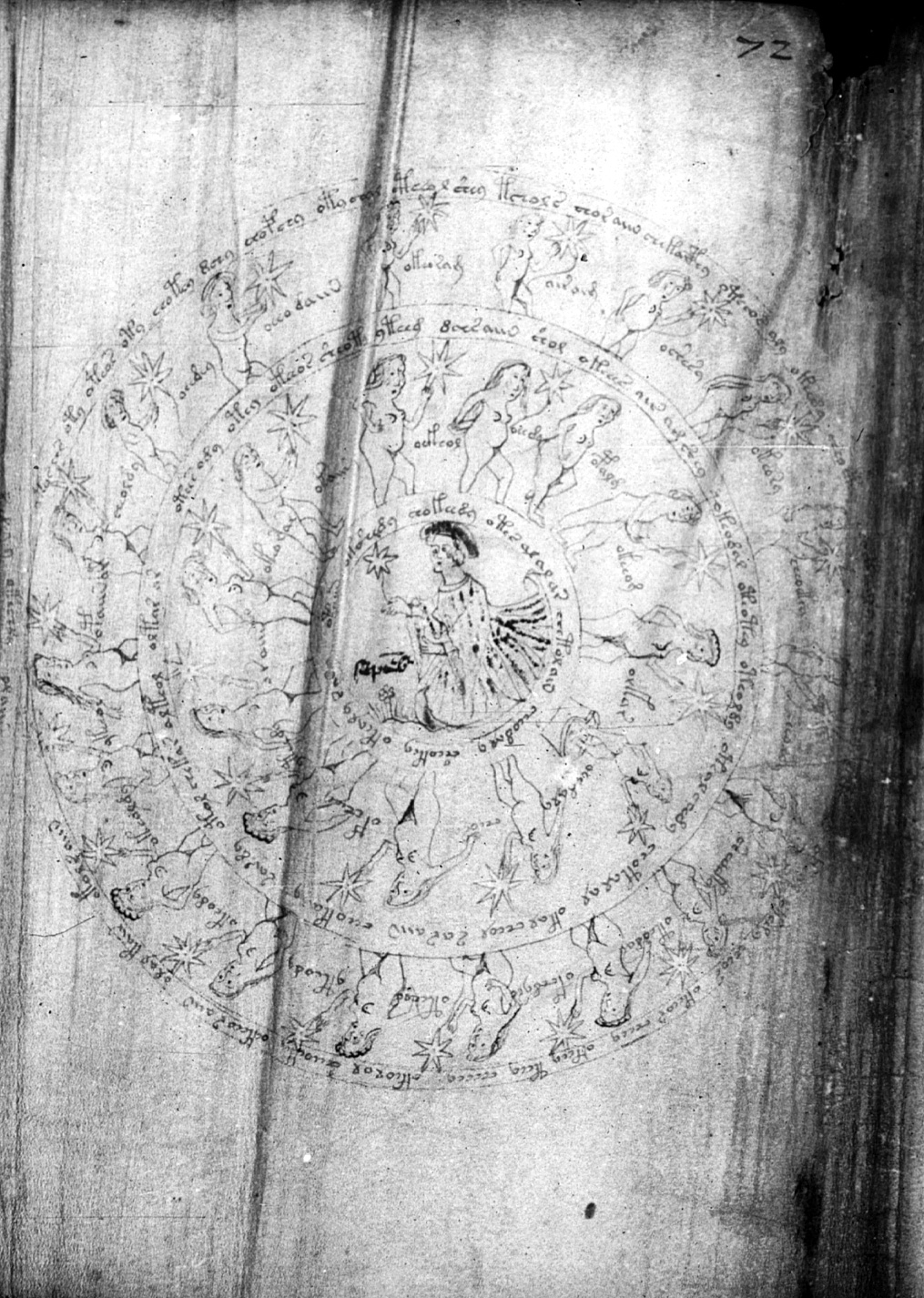

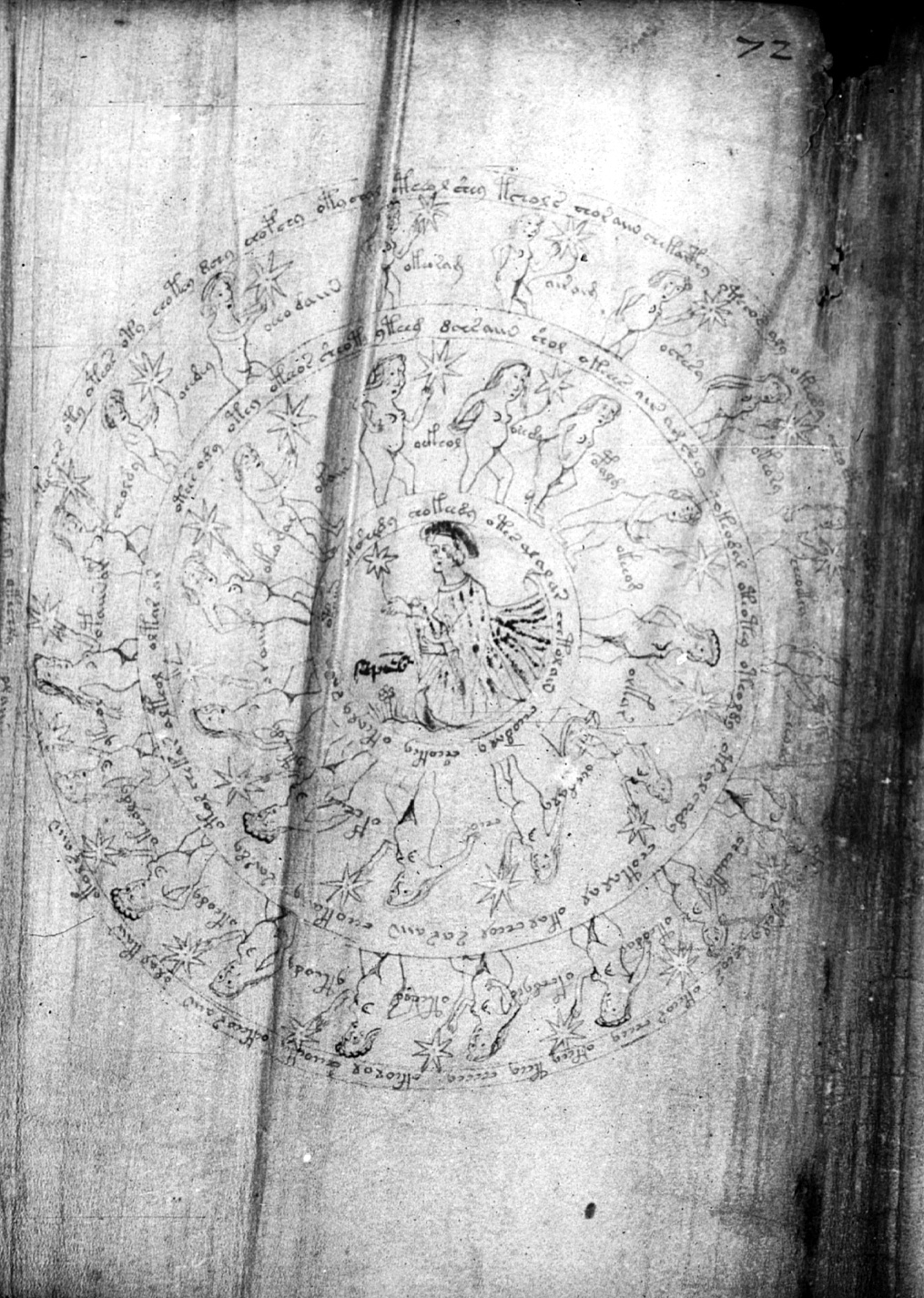

Six faint, mostly concentric, mechanically drawn circles delimit three rings of text. The outer ring crosses the fold into page f72v3, and runs under that page's diagram, so the text is interrupted between 08:30 and 09:30. There are notable gaps on the other two rings at about 09:30.
The two outermost circles are not exactly concentric, and the third one doesn't quite close on itself (at 06:30).
Inside the inner circle there is a woman (with breasts) standing, wearing a long pleated dress with flaring sleeves, and a hat or hat-like hairdo. With her right hand she is holding a star, by its tail; the left hand is empty and half-stretched forward. At her feet there is a tuft of grass and a daisy-like flower. Above the flower is a word in a dark, different script (possibly "septe~br" with the tilde over the "e").
Between the bands of text, there are two bands of naked figures ("nymphs"), 12 in the inner one, 18 in the outer one. Most of them are clearly female, but some have undefined sex (no breasts but also no genitals). The inner ring figure at 04:00 is smaller and is standing on a tub or platform of some sort.
Each nymph is holding or pointing to a star, some by its tail — except for the inner nymph at 00:30, who is just looking at the star, and the inner nymph at 01:30, who has no star. There is a label under each star.
Comments
The gaps at 09:30 suggest the text should be read starting from there.
The way f72v3 overlaps f72v2 indicates that they were drawn in that order.
Rene [27 Mar 1996] observes similarities between the zodiac symbols in the VMs and those in a 1440 german manuscript [1]. Says in particular that Virgo in that manuscript holds a flower and not a star.
Adams Douglas [28 Mar 1996] thinks the star held by the symbol-woman is Spica, the brightest star in Virgo, usually on the her head or a sceptre.
References
[1] Manuscript Palat. Lat. 1369. Samples in [2].
[2] Fritz Saxl, book about astronomical and astrological images in medieval manuscripts.
Transcriptions
All transcriptions are given in basic (lowercase) EVA. Use the extractor to get transcriptions in another format.
Unit: "Outer ring of text, starting from wide gap at 09:00 (on the crease)"
Last edited on 1998-12-19 19:14:47 by stolfi
Takeshi Takahashi:
| <f72v2.R1.1;H> | ataseos. oty. oteos. oty. chotey. dchy. chopchy. otycoyl. ctheol. shey. tchols. choraiin. chekaiphy. oteeos. yly. oksedy. cseo. cthey. ***eck*y*. ge*****eem. cth***s. okeeel. okedy. cheos. okeeor. cheey. okeey. tchy. cheeey. ekeolol. sheeoeky. oekeeor. aiin. olal. olal. kair. okolraiin- |
Jorge Stolfi:
| <f72v2.R1.1;U> | *toschs. oty. oteos. oty. chotey. dchy. chopchy. otoch**. cth**l, shey. tchols. choraiin. cheka**y. d****. o*chod. aly. *****. ****. ****. ****% % % % % % % % % % % % % % % % % % % % % % % % . ****. ****ly. cheos. okchor. cheey. okeey. cheeey. ckholol. sheeo*y. oekeeoraiin. olal, kair. okolraiin- |
Unit: "Labels on stars, Virgo, outer ring"
Last edited on 1998-12-11 13:01:56 by stolfi Numbers by John Grove, starting from 10:00 "U" transcription by J. stolfi from unidentified scan. star with tail, no breasts
Takeshi Takahashi:
| <f72v2.S1.1;H> | oeedey= |
| <f72v2.S1.2;H> | oeeo. daiin= |
| <f72v2.S1.3;H> | okeoram= |
| <f72v2.S1.4;H> | airolm= |
| <f72v2.S1.5;H> | oshesy= |
| <f72v2.S1.6;H> | okeory= |
| <f72v2.S1.7;H> | cheoekcy= |
| <f72v2.S1.8;H> | eeoeety= |
| <f72v2.S1.9;H> | sheoeky= |
| <f72v2.S1.10;H> | oteodar= |
| <f72v2.S1.11;H> | ofchdysd= |
| <f72v2.S1.12;H> | oeeod= |
| <f72v2.S1.13;H> | yteody= |
| <f72v2.S1.14;H> | okeody= |
| <f72v2.S1.15;H> | okeoldy= |
| <f72v2.S1.16;H> | ykeeol= |
| <f72v2.S1.17;H> | opaiinar= |
| <f72v2.S1.18;H> | eeeoloy= |
Jorge Stolfi:
| <f72v2.S1.1;U> | oeedey= |
| <f72v2.S1.2;U> | oeeo. daiin= |
| <f72v2.S1.3;U> | okeoram= |
| <f72v2.S1.4;U> | air. a*m= |
| <f72v2.S1.5;U> | ocsesy= |
| <f72v2.S1.6;U> | okeory= |
| <f72v2.S1.9;U> | sh***ky= |
| <f72v2.S1.10;U> | otchdar= |
| <f72v2.S1.11;U> | opchdy. s*= |
| <f72v2.S1.12;U> | oteeod= |
| <f72v2.S1.13;U> | yteody= |
| <f72v2.S1.14;U> | okeody= |
| <f72v2.S1.15;U> | okeoldy= |
| <f72v2.S1.16;U> | ykeeor= |
| <f72v2.S1.17;U> | opaiin. ar= |
| <f72v2.S1.18;U> | cheoldy= |
John Grove:
| <f72v2.S1.1;V> | oeedey= {Grove's #1, male?} |
| <f72v2.S1.2;V> | oeeo. daiin= {Grove's #2, male?} |
| <f72v2.S1.3;V> | okeoram= {Grove's #3} |
| <f72v2.S1.4;V> | air. aim= {Grove's #4} |
| <f72v2.S1.5;V> | ocsesy= {Grove's #5} |
| <f72v2.S1.6;V> | okeosy= {Grove's #6} |
| <f72v2.S1.7;V> | cheoekry= {Grove's #7, male?} |
| <f72v2.S1.8;V> | ***= {Grove's #8, male?, unreadable} |
| <f72v2.S1.9;V> | csedeky= {Grove's #9} |
| <f72v2.S1.10;V> | oteodar= {Grove's #10} |
| <f72v2.S1.11;V> | opchdysd= {Grove's #11} |
| <f72v2.S1.12;V> | oteeed= {Grove's #12} |
| <f72v2.S1.13;V> | yteody= {Grove's #13} |
| <f72v2.S1.14;V> | okeody= {Grove's #14} |
| <f72v2.S1.15;V> | okeoldy= {Grove's #15} |
| <f72v2.S1.16;V> | ykeeos= {Grove's #16} |
| <f72v2.S1.17;V> | opaiinar= {Grove's #17} |
| <f72v2.S1.18;V> | cheoldy= {Grove's #18} |
Unit: "Middle ring of text, starting from wider gap at 09:30"
Last edited on 1998-12-09 19:09:29 by stolfi
Takeshi Takahashi:
| <f72v2.R2.1;H> | otees. ody. otey. otchos. sheot*. yteed. dchsaiin. shol. okches. air. am. shey. qokeodal. oteotey. oteoldy. otealchedy. chotal. al. okal. cheol. saraiin. cheokaidy. sandy. otol. chskar. alteol. oltar. or- |
Jorge Stolfi:
| <f72v2.R2.1;U> | oteesody. otey. otchar. sheot*. yteeg. dchsaiin. shol. okeees. air. am. shey. qokeodal. oteotey. oteoldy. oteal, chedy. chotal, al. okal, cheol. sar, aiin. cheok*aly. sairdy. otol. chekar. alteol. oltar. ar- |
Unit: "Labels on stars, Virgo, inner ring"
Last edited on 1998-12-09 19:12:12 by stolfi Numbers by John Grove, starting from 11:00 "U" transcription by J. stolfi from unidentified scan. no breasts
Takeshi Takahashi:
| <f72v2.S2.1;H> | okaiin= |
| <f72v2.S2.2;H> | oekeol= |
| <f72v2.S2.3;H> | oeedy= |
| <f72v2.S2.4;H> | opalg= |
| <f72v2.S2.5;H> | okeeom= |
| <f72v2.S2.6;H> | olkar= |
| <f72v2.S2.7;H> | oeedaly= |
| <f72v2.S2.8;H> | cheos. sh*s= |
| <f72v2.S2.9;H> | ofcheay= |
| <f72v2.S2.10;H> | yteedy= |
| <f72v2.S2.11;H> | oraiin= |
| <f72v2.S2.12;H> | okeo. rar= |
Jorge Stolfi:
| <f72v2.S2.1;U> | okaiin= |
| <f72v2.S2.2;U> | ockhol= |
| <f72v2.S2.3;U> | oeedy= |
| <f72v2.S2.4;U> | opalg= |
| <f72v2.S2.5;U> | okeeog= |
| <f72v2.S2.6;U> | olkar= |
| <f72v2.S2.7;U> | oeedaly= |
| <f72v2.S2.8;U> | cheosy= |
| <f72v2.S2.9;U> | ofcheey= |
| <f72v2.S2.10;U> | yteedy= |
| <f72v2.S2.11;U> | oraiin= |
| <f72v2.S2.12;U> | okeorar= |
John Grove:
| <f72v2.S2.1;V> | okaiin= {Grove's #1, male?} |
| <f72v2.S2.2;V> | ockhol= {Grove's #2} |
| <f72v2.S2.3;V> | oeedy= {Grove's #3} |
| <f72v2.S2.4;V> | opalg= {Grove's #4} |
| <f72v2.S2.5;V> | okeeog= {Grove's #5, male?} |
| <f72v2.S2.6;V> | olkar= {Grove's #6} |
| <f72v2.S2.7;V> | oeedaly= {Grove's #7} |
| <f72v2.S2.8;V> | cheosy= {Grove's #8} |
| <f72v2.S2.9;V> | ofcheeey= {Grove's #9} |
| <f72v2.S2.10;V> | yteedy= {Grove's #10} |
| <f72v2.S2.11;V> | araiin= {Grove's #11} |
| <f72v2.S2.12;V> | okeorar= {Grove's #12} |
Unit: "Inner ring of text, starting from wider gap at 09:00"
Last edited on 1998-12-28 00:33:45 by stolfi
Takeshi Takahashi:
| <f72v2.R3.1;H> | otaiin. otshedy. chokeedy. otes. al. al. ar. chetolain. sheodaly. sheokey. okealy. sany- |
Jorge Stolfi:
| <f72v2.R3.1;U> | *t****. otshedy. chokedy. otes. alalar. chetalain. sheodaly. sheokey. okealy. r, aly- |
